▶ High quality imaging with 4K resolution
▶ Efficient H.265+ compression technology
▶ Clear imaging even with strong back lighting due to 120 dB WDR
▶ Water and dust resistant (IP67)
▶ EXIR 2.0: advanced infrared technology with long IR range
▶ Hik-Connect cloud service and APP for remote management and views of devices
▶ Built-in microphone for real-time audio security
▶ Support up to 256 GB SD card storage
▶ Focus on human and vehicle targets classification based on deep learning
Q&A Time:
- Question 1: Can I add a different camera to this system?
- Answer: Yes. You can add any VIKYLIN VK-Series or Hikvision PoE cameras, They can be plug & play. Or add cameras with Onvif protocol, most of them are compatible, if you don't know, you can consult VIKYLIN technical team in advance.
- Question 2: Can it work without internet?
- Answer: Yes. All VIKYLIN PoE systems can work offline. However, in this case, you will not be able to access the system remotely through the VKLOOK App/Client.
- Question 3: How is the connection? Is the system truly plug and play?
- Answer: Yes. PoE (Power over Ethernet) enables the camera to receive power while entering the network with only one Ethernet cable connected to the NVR recorder. Setup can be done in minutes.
Identify True Threats, Enjoy Peace of Mind
Smart Motion Detection
This security camera system is based on Hikvision intelligent detection algorithm, thereby minimizing unwanted alarms such as leaves or shadows. When a moving object is detected, it will automatically record and take a snapshot, and then send you an email alert through the mobile phone software "VKLOOK", no need to record 24 hours, and save more storage space intelligently.
|
|

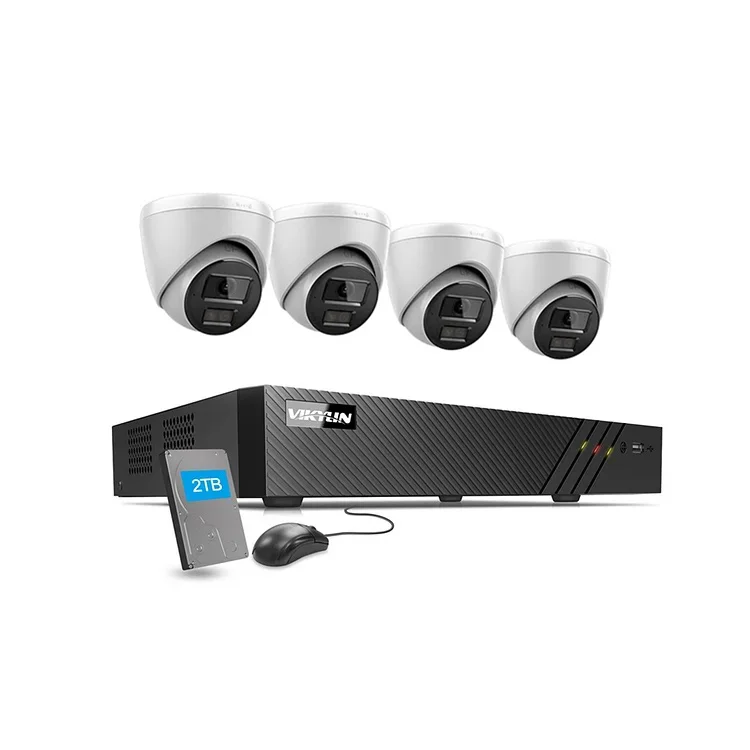

What's in the Box?
VIKYLIN System is Perfectly Compatible with Hikvision Camera, Plug and Play The system's cameras can work without an NVR. |
|
Leading-Edge H.265+ TechnologyH.265+ technology provides better image quality and not only reduces bandwidth up to 75%, but also saves storage space up to 75%. |
Smart 24/7 recordingHere are three kinds of recording modes for you to choose: 24/7 recording, schedule recording, motion detection recording. |
Easy to OperateThanks to the simple and intuitive VKLOOK software, the system can be accessed in multiple ways for remote control with no need of any subscription. Also, up to 32 user accounts can be created to share access. |
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type & FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 53°, diagonal FOV 123° |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Video | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50 Hz: 12.5 fps (3840 × 2160, 2592*1944，2688 × 1520, 1920 × 1080, 1280 × 720) |
| 60 Hz: 15 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720) | |
| Sub Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) |
| 60 Hz: 30 fps (640 × 480, 640 × 360) | |
| Video Compression | Main stream: H.265+/H.265 |
| Sub-stream: H.265/MJPEG | |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.265 supports |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL/TLS, PPPoE |
| User/Host | Up to 32 users |
| 3 levels: Administrator, Operator and User | |
| Network Storage | Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11 |
| Local service: Chrome 57.0+, Firefox 52.0+ | |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance ajustable by client sfotware or web browser |
| Privacy Mask | 4 regions of privacy masks |
| Interface | |
| Built-in Microphone | Yes |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Smart Feature-Set | |
| Basic Event | Motion detection(support alarm triggering by specified target types (human and vehicle)), video tampering, exception |
| General | |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Firmware Version | V5.5.104 |
| Web Client Language | 33 languages |
| English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | |
| General Function | Anti-flicker, heartbeat, password protection, password reset via email |
| Software Reset | Yes |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% |
| PoE: 802.3af, Type 1 Class 3 | |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W |
| PoE (802.3af, 36 V to 57 V), 0.20 A to 0.1 A, max. 6.5 W | |
| Power Interface | Ø5.5 mm coaxial power plug |
| Camera Material | Aluminum alloy body |
| Camera Dimension | Ø110 mm × 81.25 mm (Ø4.33" × 3.20") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Camera Weight | Approx. 390 g (0.9 lb.) |
| With Package Weight | Approx. 656 g (1.4 lb.) |
| Approval | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); |
| CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); | |
| RCM (AS/NZS CISPR 32: 2015); | |
| IC VoC (ICES-003: Issue 6, 2016); | |
| KC (KN 32: 2015, KN 35: 2015) | |
| Safety | UL (UL 60950-1); |
| CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); | |
| CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); | |
| BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); | |
| LOA (IEC/EN 60950-1) | |
| Environment | CE-RoHS (2011/65/EU) |
| WEEE (2012/19/EU) | |
| Reach (Regulation (EC) No 1907/2006) | |
| Protection | IP67 (IEC 60529-2013) |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Lens | |
| Lens Type & FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 54°, diagonal FOV 121° |
| Aperture | F1.0 |
| Lens Mount | M12 |
| Aperture Type | Fixed |
| Depth of Focus | 2.8 mm: 3.1 m to ∞ |
| Illuminator | |
| Smart Supplement Light | Yes |
| Supplement Light | White |
| White Light Range | Up to 30 m |
| Video | |
| Main Stream | 50Hz: 20 fps (2560 × 1440) |
| 25 fps (2304 × 1296，1920 × 1080, 1280 × 720) | |
| 60Hz: 20 fps (2560 × 1440) | |
| 30 fps (2304 × 1296，1920 × 1080, 1280 × 720) | |
| Sub Stream | 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) | |
| * Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream. | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 |
| Sub-stream: H.265/H.264 | |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, |
| QoS, IPv6, UDP, Bonjour, SSL/TLS | |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, |
| security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF | |
| Client | VKLOOK,VKTOOL |
| Web Browser | Plug-in required live view: IE 10, IE 11 |
| Local service: Chrome 57.0+, Firefox 52.0+ | |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance |
| adjustable by client software or web browser | |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Intelligent (Traditional Algorithm) | |
| Basic Event | Motion detection, exception (illegal login) |
| General | |
| Linkage Method | Upload to FTP/NAS, notify surveillance center, send email, trigger recording, triggercapture |
| Web Client Language | English |
| General Function | Anti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail |
| Software Reset | Reset via web browser and client software |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection |
| Power Consumption and | 12 VDC, 0.37 A, max. 4.5 W |
| Current | PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Material | Metal |
| Camera Dimension | 62 × 57.7 × 148.3 mm |
| Package Dimension | 172 × 104 × 80 mm |
| Camera Weight | Approx. 430 g (0.9 lb.) |
| With Package Weight | Approx. 520 g (1.1 lb.) |
| Model | VK608Q | |
| Video/Audio input | IP video input | 8-ch |
| Up to 8 MP resolution | ||
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | |
| Network | Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 80 Mbps | |
| Video/Audio output | Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI output resolution | 1-ch, 4K (3840 × 2160)/30Hz, | |
| 1920 × 1080p/60Hz, 1600 × | ||
| 1200/60Hz, 1280 × | ||
| 1024/60Hz, 1280 × 720/60Hz, | ||
| 1024 × 768/60Hz; | ||
| HDMI/VGA simultaneous output | ||
| VGA output resolution | 1-ch, 1920 × 1080p/60Hz, | |
| 1600 × 1200/60Hz, 1280 × | ||
| 1024/60Hz, 1280 × 720/60Hz, | ||
| 1024 × 768/60Hz ; | ||
| HDMI/VGA simultaneous output | ||
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Decoding | Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Live view / Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
| Synchronous playback | 8-ch | |
| Capability | 1-ch @ 8 MP / 4-ch @ 1080p | |
| Network management | Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | SATA | 1 SATA interface |
| Capacity | Up to 6TB capacity for each disk | |
| External interface | Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| USB interface | 2 × USB 2.0 | |
| POE Interface | Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 75W | |
| Standard | IEEE 802.3 af/at | |
| General | Power supply | 48 VDC |
| Power | ≤ 90 W | |
| Consumption(without hard disk) | ≤ 10 W (without enabling PoE) | |
| Working temperature | -10 to +55º C (+14 to +131º F) | |
| Working humidity | 10 to 90 % | |
| Chassis | 1U chassis | |
| Dimensions(W × D × H) | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") | |
| Weight(without hard disk) | ≤ 1 kg (2.2 lb) | |
Q&A Time:
- Question 1: Can I add a different camera to this system?
- Answer: Yes. You can add any VIKYLIN VK-Series or Hikvision PoE cameras, They can be plug & play. Or add cameras with Onvif protocol, most of them are compatible, if you don't know, you can consult VIKYLIN technical team in advance.
- Question 2: Can it work without internet?
- Answer: Yes. All VIKYLIN PoE systems can work offline. However, in this case, you will not be able to access the system remotely through the VKLOOK App/Client.
- Question 3: How is the connection? Is the system truly plug and play?
- Answer: Yes. PoE (Power over Ethernet) enables the camera to receive power while entering the network with only one Ethernet cable connected to the NVR recorder. Setup can be done in minutes.
Identify True Threats, Enjoy Peace of Mind
Smart Motion Detection
This security camera system is based on Hikvision intelligent detection algorithm, thereby minimizing unwanted alarms such as leaves or shadows. When a moving object is detected, it will automatically record and take a snapshot, and then send you an email alert through the mobile phone software "VKLOOK", no need to record 24 hours, and save more storage space intelligently.
|
|
What's in the Box?
VIKYLIN System is Perfectly Compatible with Hikvision Camera, Plug and Play The system's cameras can work without an NVR.
|
|
Leading-Edge H.265+ Technology H.265+ technology provides better image quality and not only reduces bandwidth up to 75%, but also saves storage space up to 75%. |
Smart 24/7 recording Here are three kinds of recording modes for you to choose: 24/7 recording, schedule recording, motion detection recording. |
Easy to Operate Thanks to the simple and intuitive VKLOOK software, the system can be accessed in multiple ways for remote control with no need of any subscription. Also, up to 32 user accounts can be created to share access. |
| Camera | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type & FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 53°, diagonal FOV 123° |
| Aperture | F2.0 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Video | |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50 Hz: 12.5 fps (3840 × 2160, 2592*1944，2688 × 1520, 1920 × 1080, 1280 × 720) |
| 60 Hz: 15 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 720) | |
| Sub Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) |
| 60 Hz: 30 fps (640 × 480, 640 × 360) | |
| Video Compression | Main stream: H.265+/H.265 |
| Sub-stream: H.265/MJPEG | |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.265 supports |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, ISUP |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP, 802.1x, SSL/TLS, PPPoE |
| User/Host | Up to 32 users |
| 3 levels: Administrator, Operator and User | |
| Network Storage | Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11 |
| Local service: Chrome 57.0+, Firefox 52.0+ | |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance ajustable by client sfotware or web browser |
| Privacy Mask | 4 regions of privacy masks |
| Interface | |
| Built-in Microphone | Yes |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Smart Feature-Set | |
| Basic Event | Motion detection(support alarm triggering by specified target types (human and vehicle)), video tampering, exception |
| General | |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Firmware Version | V5.5.104 |
| Web Client Language | 33 languages |
| English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | |
| General Function | Anti-flicker, heartbeat, password protection, password reset via email |
| Software Reset | Yes |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% |
| PoE: 802.3af, Type 1 Class 3 | |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W |
| PoE (802.3af, 36 V to 57 V), 0.20 A to 0.1 A, max. 6.5 W | |
| Power Interface | Ø5.5 mm coaxial power plug |
| Camera Material | Aluminum alloy body |
| Camera Dimension | Ø110 mm × 81.25 mm (Ø4.33" × 3.20") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Camera Weight | Approx. 390 g (0.9 lb.) |
| With Package Weight | Approx. 656 g (1.4 lb.) |
| Approval | |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); |
| CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); | |
| RCM (AS/NZS CISPR 32: 2015); | |
| IC VoC (ICES-003: Issue 6, 2016); | |
| KC (KN 32: 2015, KN 35: 2015) | |
| Safety | UL (UL 60950-1); |
| CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); | |
| CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); | |
| BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); | |
| LOA (IEC/EN 60950-1) | |
| Environment | CE-RoHS (2011/65/EU) |
| WEEE (2012/19/EU) | |
| Reach (Regulation (EC) No 1907/2006) | |
| Protection | IP67 (IEC 60529-2013) |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Lens | |
| Lens Type & FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 54°, diagonal FOV 121° |
| Aperture | F1.0 |
| Lens Mount | M12 |
| Aperture Type | Fixed |
| Depth of Focus | 2.8 mm: 3.1 m to ∞ |
| Illuminator | |
| Smart Supplement Light | Yes |
| Supplement Light | White |
| White Light Range | Up to 30 m |
| Video | |
| Main Stream | 50Hz: 20 fps (2560 × 1440) |
| 25 fps (2304 × 1296，1920 × 1080, 1280 × 720) | |
| 60Hz: 20 fps (2560 × 1440) | |
| 30 fps (2304 × 1296，1920 × 1080, 1280 × 720) | |
| Sub Stream | 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240) | |
| * Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream. | |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 |
| Sub-stream: H.265/H.264 | |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | BaseLine Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, |
| QoS, IPv6, UDP, Bonjour, SSL/TLS | |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, |
| security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF | |
| Client | VKLOOK,VKTOOL |
| Web Browser | Plug-in required live view: IE 10, IE 11 |
| Local service: Chrome 57.0+, Firefox 52.0+ | |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance |
| adjustable by client software or web browser | |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Intelligent (Traditional Algorithm) | |
| Basic Event | Motion detection, exception (illegal login) |
| General | |
| Linkage Method | Upload to FTP/NAS, notify surveillance center, send email, trigger recording, triggercapture |
| Web Client Language | English |
| General Function | Anti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail |
| Software Reset | Reset via web browser and client software |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection |
| Power Consumption and | 12 VDC, 0.37 A, max. 4.5 W |
| Current | PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Material | Metal |
| Camera Dimension | 62 × 57.7 × 148.3 mm |
| Package Dimension | 172 × 104 × 80 mm |
| Camera Weight | Approx. 430 g (0.9 lb.) |
| With Package Weight | Approx. 520 g (1.1 lb.) |
| Model | VK608Q | |
| Video/Audio input | IP video input | 8-ch |
| Up to 8 MP resolution | ||
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | |
| Network | Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth | 80 Mbps | |
| Video/Audio output | Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI output resolution | 1-ch, 4K (3840 × 2160)/30Hz, | |
| 1920 × 1080p/60Hz, 1600 × | ||
| 1200/60Hz, 1280 × | ||
| 1024/60Hz, 1280 × 720/60Hz, | ||
| 1024 × 768/60Hz; | ||
| HDMI/VGA simultaneous output | ||
| VGA output resolution | 1-ch, 1920 × 1080p/60Hz, | |
| 1600 × 1200/60Hz, 1280 × | ||
| 1024/60Hz, 1280 × 720/60Hz, | ||
| 1024 × 768/60Hz ; | ||
| HDMI/VGA simultaneous output | ||
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | |
| Decoding | Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Live view / Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
| Synchronous playback | 8-ch | |
| Capability | 1-ch @ 8 MP / 4-ch @ 1080p | |
| Network management | Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | SATA | 1 SATA interface |
| Capacity | Up to 6TB capacity for each disk | |
| External interface | Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| USB interface | 2 × USB 2.0 | |
| POE Interface | Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 75W | |
| Standard | IEEE 802.3 af/at | |
| General | Power supply | 48 VDC |
| Power | ≤ 90 W | |
| Consumption(without hard disk) | ≤ 10 W (without enabling PoE) | |
| Working temperature | -10 to +55º C (+14 to +131º F) | |
| Working humidity | 10 to 90 % | |
| Chassis | 1U chassis | |
| Dimensions(W × D × H) | 315 × 240 × 48 mm (12.4" × 9.4" × 1.9") | |
| Weight(without hard disk) | ≤ 1 kg (2.2 lb) | |
