PG Series

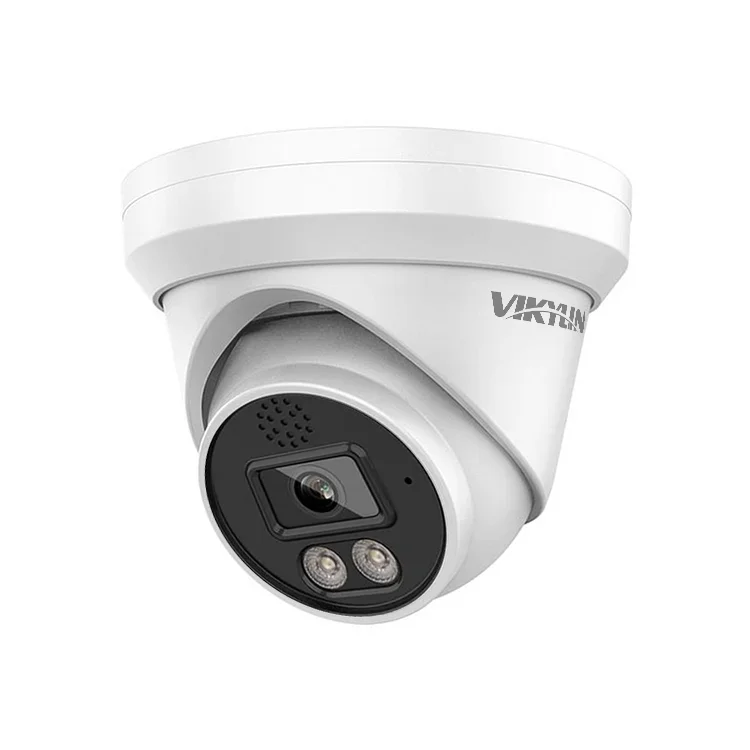

5 MP Dual Light Source Fixed Dome Network Camera

SKU: PG2356IRC
Free shipping
Fast delivery from overseas warehouses
Multiple secure and reliable payment ways
24 Hours Professional technical team support
Quantity

Download the latest firmware for PG2356IRC best security camera systems. Enhance the camera's surveillance performance and security features through software updates to ensure that your poe security camera systems operates at its best.

Access all the resources you need to optimize your product experience - firmware updates, software releases, user manuals, and instruction guides are just a click away.

Note: that these resources and support services are subject to updates, so check back regularly for the latest releases and information.

▶  5MP IP IR PoE Security Dome Camera: 1/2.8” Progressive Scan CMOS

▶  ColorVu Full color technology

▶  2592 x 1944@25fps

▶  HD 2.8/3.6 mm fixed lens

▶  Color: 0.01 Lux @(F1.6, AGC ON),0 Lux with Light

▶  H.265+,H.265,H.264

▶  Support PoE

▶  BLC/3D DNR/HLC/WDR

▶  Built-in Mic

▶  IP67

Compatible for Hikvision 5MP Outdoor Security IP PoE Turret IR Camera with Smart Dual Light

Remote Viewing, Simple Setting, Compatible with Hikvision ,Plug and Play

You can access Apple App or Google Play Store through your smartphone to download the "Danale" app for iOS or Android devices for P2P control, and watch real-time videos at any time. The poe camera is compatible with Hikvision, also can work with most of NVRs, and the camera can be worked with most of security monitor software, like Blue Iris, iSpy, VLC, and so on

  • Default IP address: 192.168.1.110, username: admin, password: 123456
  • Please modify the default ip address and password by installing the device search tool ‘SADP Tool or AjDevTools, But Retset the password need use the AjDevTools or change througt Internet Explorer
  • Working with Internet Explorer by type the camera’s ip address
  • Real time view on mobile phone after installing the ‘Danala’ app from APP Store or GooglePlay Market
  • Compatible with Hi-kvision,Plug and Play with hi-kvision NVR
  • Support most of the other brands NVR that support on-vif protocol
  • Smart dual light 98ft IR night vision, when human break in, the white light will automatically turn on for color night vision to Active Deterrence

Compatible for Hikvision 5MP Outdoor Security IP PoE Turret IR Camera with Smart Dual Light
Full Color Active Deterrence for Human Detection ,Built in Mic,2.8mm Lens,H.265+, IP67,WDR

5MP Smart IR Low-Illumination

Rest assured knowing that your security camera can see up to 30m in total darkness.

Wide Dynamic Range

Advanced wide dynamic range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Built-in Microphone Audio Recording

Security cameras with Built-in a waterproof microphone,Allows simultaneous video and audio streaming over the network to a network video recorder or computer. Records what people say,make it authentic with sound video recording.

Motion Detection And Smartest Way for Alerts

You can enable motion detection alerts, when the object moves, the camera will send the abnormal situation to your Email.

IP67 Waterproof

This 5mp poe ip camera features a heavy-duty metal Weatherproof IP67 housing Vandal-Proof Protection cover protects against most weather effects, such as Rain, exposure, frost, dust, and even vandalism.

Advanced H.265+ Video Format

H.265 smart codec can save up to 80% on network bandwidth.Save storage space and view fast stream with H.265+ coding and switch to H.265, H.264+ & H.264 coding based on the storage space & network condition.

Onvif Protocol

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.The camera compatible with Hikvision's private connection protocol, it can be plug and play with Hikvision's video recorder,perfect connection.

Camera
Image Sensor 1/2.8”Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.6, AGC ON),0 Lux with Light
White Balance Auto/Manual
Shutter Speed 1/10 s to 1/10,000 s
Day & Night IR Cut Filter
Digital Noise Reduction 2D/3D DNR
WDR Support
Privacy Mask 4 programmable privacy masks
Lens
Focal Length 2.8 mm (3.6mm Optional)
Field of View Horizontal field of view: 103°
Vertical field of view: 59°
Diagonal field of view: 118°
Compression Standard
Video Compression Main stream: H.265+,H.265,H.264
Sub-stream: H.265+,H.265,H.264
H.265 Type Baseline profile/Main profile/High profile
H.265+ Yes
Event
Basic Event Motion Detection
Intelligent detection Human Detection
Illuminator
Light Range 30m
LEDS 2PCS IR LED + 2PCS Warm Light LED
Max. Resolution 2592 x 1944
Main Stream 25fps @2592 × 1944/2560 × 1440   30fps@1080P/720P
Sub-Stream 30fps@D1/VGA/640x360/480 x360 /CIF
Image Enhancement BLC/3D DNR/HLC/WDR
Network
Network Storage Support Local storage and NFS,NVR,APP Cloud Storage
Protocols TCP/IP/IPv4/IPv6/HTTP/RTSP/NFS/DHCP/NTP/SMTP/FTP/SSL
General Fuction Built-in Mic,Privacy Masks,  Horizon/Vertical Flip,Password Reset,Upgrade
API ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live View Up to 20 channels
User/Host 3 levels: Administrators, Operators and Users
Client AjDevTool,SADP, Danale App,LMS,iVMS-4200
Web Browser IE 8+ ,Chrome 57.0+, Firefox 52.0+
Interface
Network Interface 1 RJ45 10 M/100 M Ethernet, PoE
Power 12V DC
Audio IN Built-in Mic
Audio Out N/A
RS485 N/A
SD Card slot N/A
General
Web Client Language 7 languages:
Chinese, English, Russian,  German, Italian, , Turkish,
한국어
Power 12V DC, 1.5 A (Max. 10.9 W, including Max. 4.2 W for IR)
PoE (802.3af), 36 to 57V DC, 0.35 A (Max. 12.2 W, including max. 4.2 W for IR)
Working Environment Temperature: -20°C to 60°C (-4°F to 140°F), humidity: ≤ 90%
Protection Level IP67
Material Metal
Dimension Package: 140 x 135 x 115 mm (5.5'' x 5.3'' x 4.5'')
Weight With Package : Approx. 0.53 kg (1.16 lb.)
