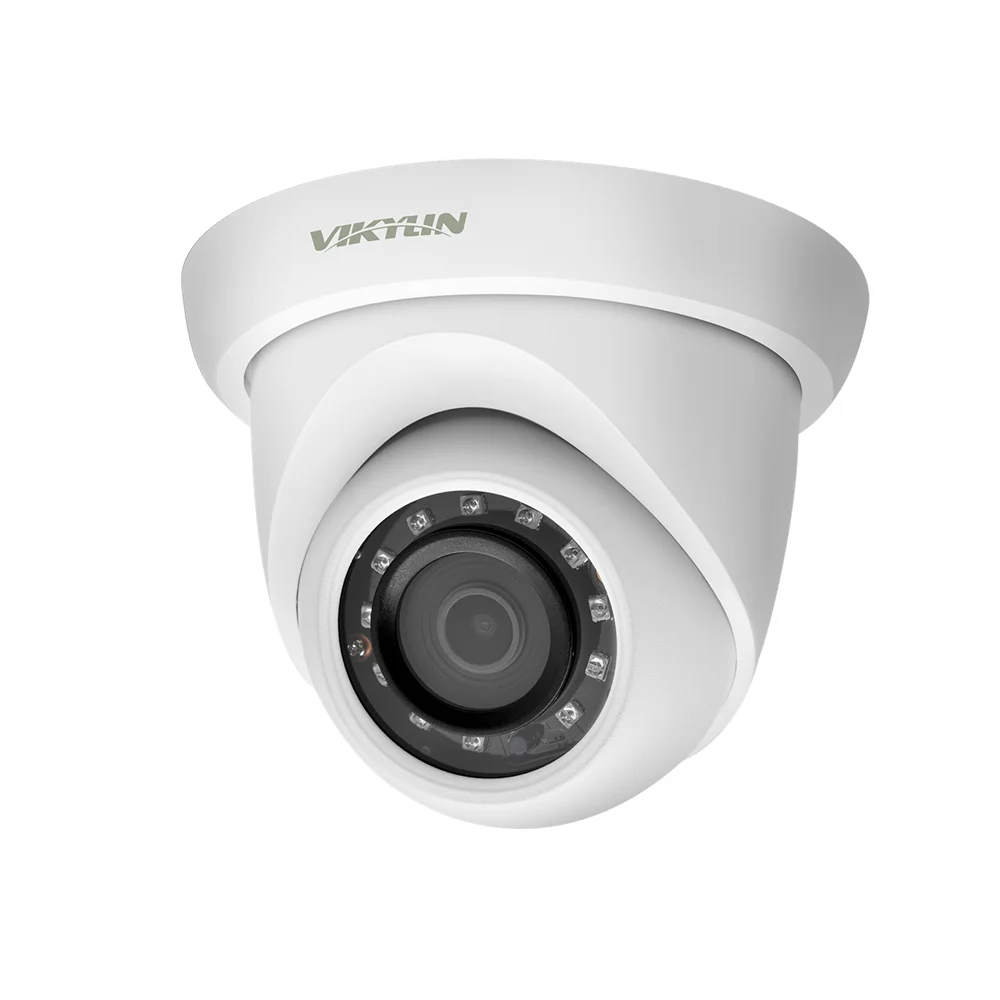

▶ 4MP Fixed IP Camera, 1/3” CMOS image sensor, low illuminance, high image definition
▶ Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP (2688 × 1520) @20 fps
▶ H.265 codec, high compression rate, ultra-low bit rate
▶ Built-in IR LED, max. IR distance: 30 m
▶ ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
▶ Image Rotation, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
▶ Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access, voltage detection
▶ 12V DC/PoE power support
▶ IP67, protection
For more detailed information about these types of security cameras and to explore powerful surveillance technology, click here.
4MP ColorVu Full Color Technology
ColorVu Full color Cameras’ powerful ability to capture details in low lighting comes from two specific breakthroughs in hardware technologies: advanced lenses and high-performance sensors. coupled with a supplemental light for extremely dark scenarios, Full color cameras provide video with colorful details when you need them.
Intrusion Detection
Setting up an area and the time allowed to pass through this area.when human or vehicle enter this area over the time setting, the alarm will be triggered. The time range allowed to be set is 0-10 seconds.



Line Crossing Detection
Night Vision For All-Night Security Coverage
Rest assured knowing that your security camera can see up to 30m in total darkness.
Advanced H.265+ Video Format
Save storage space and view fast stream with H.265+ coding and switch to H.265, H.264+ & H.264 coding based on the storage space & network condition.
120 dB True WDR & 3D DNR
The true WDR ensures even illumination for all areas of an image and balances the lighting to produce sharper videos.
Eliminate the image noise day & night greatly with the 3D DNR for clean images and save the video storage space.



IP67 Waterproof
This 4mp poe ip camera features a heavy-duty metal Weatherproof IP67 housing Vandal-Proof Protection cover protects against most weather effects, such as Rain, exposure, frost, dust, and even vandalism.
Motion Detection And Email Alert
You can enable motion detection alerts, when the object moves, the camera will send the abnormal situation to your Email.
Onvif Protocol
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.The camera compatible with Hikvision's private connection protocol, it can be plug and play with Hikvision's video recorder,perfect connection.

Easy To Install
Easy To Install Security Camera
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/3”4Megapixel progressive CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
2688 (H) ×1520 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
> 56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.03 Lux @ F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
30 m (98.4 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
12 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–355° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
2.8 mm: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
2.8 mm: 0.8 m (2.6 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8mm |
50.0 m (183.7 ft) |
22.4 m (73.5 ft) |
11.2 m (36.7 ft) |
15.1 m (18.4 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6mm |
80.0 m (262.5 ft) |
32.0 m (105.0 ft) |
16.0 m (52.5 ft) |
8.0 m (26.2 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.265; H.264; H.264B; MJPEG(only supported by sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main Stream: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability |
2 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR; VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H.264: 32 kbps–6144 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Manual/Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest(RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
20 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
FTP; SFTP; NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone |
IOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: EN62368-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12V DC/POE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
< 4.9W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-40°C to +55°C (-40°F to +131°F) /less than≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Strorage Conditions |
-40°C to +60°C (-40°F to +140°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Inner core:metal; cover:plastic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
84.9 mm × Φ108 mm (3.3" × Φ4.3") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.27 kg (0.6 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.40 kg (0.9 lb) |
