Download the latest firmware for PTZ-4818X-IS outdoor video camera. Enhance the camera's surveillance performance and security features through software updates to ensure that your ebay security cameras operates at its best.
Access all the resources you need to optimize your product experience - firmware updates, software releases, user manuals, and instruction guides are just a click away.
Note: that these resources and support services are subject to updates, so check back regularly for the latest releases and information.

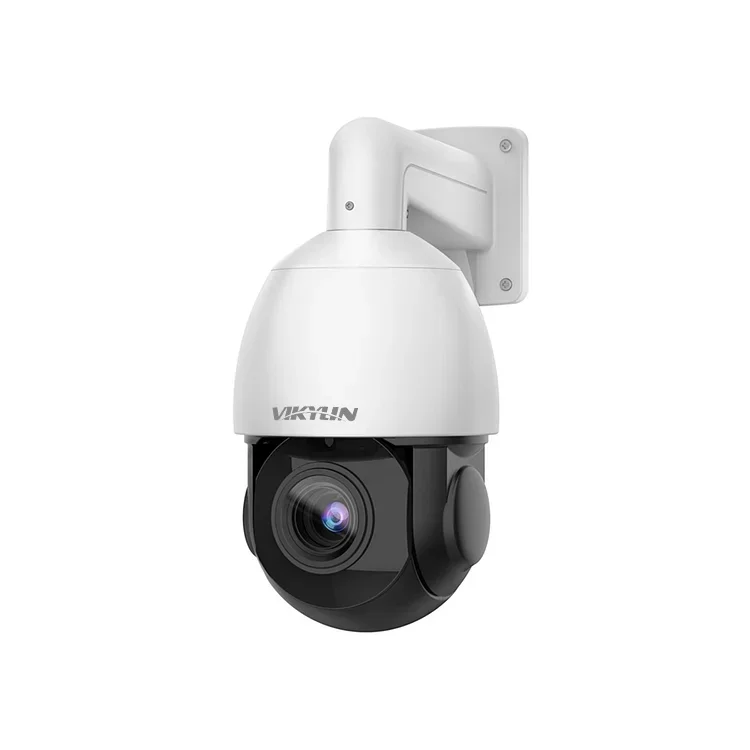

▶ 8MP IP PoE PTZ Camera: 1/2.8” Progressive Scan CMOS
▶ 3840 x 2160@20fps
▶ HD 4.7-84.6 mm Motorized lens
▶ Color: 0.01 Lux @(F2.0, AGC ON)
▶ B/W:0.004 Lux @(F2.0, AGC ON),0 Lux with IR
▶ H.265+,H.265,H.264
▶ Support PoE
▶ BLC/3D DNR/HLC/WDR
▶ IP66
360° Pan & 90° Tilt- Monitor a Large Area, 18X Optical Zoom - See Closer and Sharper.
- 360° Pan- 90° Tilt - Features 360°pan & 90° tilt function, the 4k ptz ip camera is able to monitor a larger area; it is quite easy to adjust viewing angle via hikvision nvr or m8obile APP, just slide to left or right, up or down to get the best view.
- 18X Optical Zoom - The outdoor ptz camera outdoor features a 4.7~84.6 mm motorized varifocal auto-focus Lens, along with the viewing angle varying from 51.8°~5.86°, allowing you view more sharper details with auto focus 18X optical zoom.
- Two Way Talk - The built-in mic and speaker provide two-way audio so you can communicate with anyone remotely via the 4k ptz camera.
- Human/Vehicle Detection - Intelligent AI detection helps you narrow down your detection to avoid useless alarm messages and see only what you want to see, with an accuracy rate of 95%.
- Auto Tracking - When the 8mp ptz camera detects a humanoid target, it will automatically track the moving target and also automatically zoom in on the target, with the siren bell will work together.
- Automatic Cruise - support 192 preset points, 16 guarding points, 8 groups of automatic cruise, support DIY cruise patrol to guard your home, no dead ends.
AI Human/Vehicle detection functions
Spport human/Vehicle detection functions, the detection area or sensitivity can be adjusted to effectively reduce false alarms
4K/8MP Ultra HD Image
The ptz ip camera boasts 4 times the definition of 1080P, can experience high-definition smooth recording footage(3840 × 2160)@20fps,and brings everything to life, along with top-of-the-line megapixel quality. This level of ultra high definition enables you to see faraway license plates and human faces very clearlyThe poe ptz camera outdoor with ICR day/night auto ir-cut filter switch ,comes with come with 6 IR leds illumination , clear IR night vision range up to 165ft.
Advanced Video Format
With advanced scene-adaptive rate control algorithm, smart encoding technology realizes the higher encoding efficiency than H.264, provides high-quality video, and reduces the cost of storage and transmissionConnect the PoE surveillance camera to almost all brands' NVRs for 24/7 recording based on the NVR's coding format.
How to use the Auto tracking for human deteaction
4K 8MP Outdoor POE PTZ Camera, Auto-Tracking Security IP Camera with 18X Optical Zoom, Human/Vehicle Detection, 2-Way Audio
How to use the Auto tracking for human deteaction:
step 1 pls log in trough IE brower by typing the camera's IP,
step 2 click Event to Check whether the human detection function is turned on, should be turned on
step 3.Click "live" to enable automatic tracking in "Preset" call92
Please pay attention When you can't add our camera with danale app, please change AC18pro APP to add our camera, because we updated to AC18pro APP
Professional auto-tracking for Human detection and Buil in Two way audio Audible Waring
Please pay attention When you can't add our camera with danale app, please change AC18pro APP to add our camera, because our product danale app updated to AC18pro APP
How to set the the time between cruise?
for example when you want to set the cruise 41 and the interval time need 15seconds
step 1 typing 114 ,click add
step 2 typing 15,click add
step 3 typing 41,click call, then the cruise 41 start to cruise , and stop for 15 seconds,then restart to cruise
Please pay attention When you can't add our camera with danale app, please change AC18pro APP to add our camera, because we updated to AC18pro APP
AI Human/Vehicle detection functions
Spport human/Vehicle detection functions, the detection area or sensitivity can be adjusted to effectively reduce false alarms
Please pay attention When you can't add our camera with danale app, please change AC18pro APP to add our camera, because our product danale app updated to AC18pro APP Access Apple App or Google Play Store through your smartphone to download the "AC18pro" or "Danale" app for iOS or Android devices for P2P control, You can view, record and playback UltraHD footage directly from your smartphone with the app to got a better clear viewing experience
Monitor A Large Area - Outdoor 4K PTZ PoE Camera,See Closer and Sharper
The outdoor PTZ camera features a 4.7~84.6 mm Motorized Varifocal Auto-focus Lens, along with the viewing angle varying from 64°~2.9°, allowing you view more sharper details with 18X optical zoom autofocus
360° Pan- 90° Tilt-- Features 360°pan & 115° tilt function, the ptz ip camera is able to monitor a larger area; it is quite easy to adjust viewing angle via hi-kvision PoE NVR or Mobile APP, just slide to left or right, up or down to get the best view
Auto Cruising-225 Presets, support 8 groups auto cruising Each group of cruising routes can be set to 16 preset positions and cyclically according to your preset positions , support diy cruise patrol to guard your home, no any blind corner
Tips:
1) About the AjDevTools Software pls don’t worry this is an absolutely safe application software, beacause there is a protection mechanism inside the program to prevent others from cracking the application at will. This protection mechanism will make the computer unable to recognize the internal program normally, so the computer will prompt that it is unknown software or virus software. so please ignore the prompt to continue the installation
2) It will be better to log in to the camera with the IE browser, use other browsers sometine will cause operation delay and lag problems due to compatibility issues, so in order to bring you a better product experience, please use the IE browser
3) pls follow up the steps to get the camera work for you : step 1 use the same poe switch to connect your computer and the ptz camera; Step 2 Use hikvision SADP tools or AjDevTools to search and modify for the camera's IP address , ensure the camera IP address and your computer IP address are in the same segment, the AjDevTools and SADP tools you can downlaod from the website: (ourdownload.store) ; Step 3 use the Internet Explorer brower by type the camera’s ip address,so that you can access and view the camera
|
4K/8MP Ultra HD Image The ptz ip camera boasts 4 times the definition of 1080P, can experience high-definition smooth recording footage(3840 × 2160)@20fps,and brings everything to life, along with top-of-the-line megapixel quality. This level of ultra high definition enables you to see faraway license plates and human faces very clearlyThe poe ptz camera outdoor with ICR day/night auto ir-cut filter switch ,comes with come with 6 IR leds illumination , clear IR night vision range up to 165ft. |
P2P Real-time Remote Monitoring Please pay attention When you can't add our camera with danale app, please change AC18pro APP to add our camera, because our product danale app updated to AC18pro APP Access Apple App or Google Play Store through your smartphone to download the "AC18pro" or "Danale" app for iOS or Android devices for P2P control, You can view, record and playback UltraHD footage directly from your smartphone with the app to got a better clear viewing experienc. |
IP66 Weatherproof The outdoor ptz poe camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. |
|
Advanced Video Format With advanced scene-adaptive rate control algorithm, smart encoding technology realizes the higher encoding efficiency than H.264, provides high-quality video, and reduces the cost of storage and transmissionConnect the PoE surveillance camera to almost all brands' NVRs for 24/7 recording based on the NVR's coding format. |
Wide Dynamic Range technology 120dB WDR(Wide Dynamic Range) cameras often incorporate an image sensor that takes different exposures of a scene and combine them into one image, enabling objects in both bright and dark areas of a scene to be visibleCompatible with Hikvision Private Protocol, camera Plug & Play with Hikvision NVR. Compatible ON-VIF protocol, it`s connectable to third party NVR, and work with Blur Iris and iSpy. In order to give full play to the functional advantages of the camera, it's recommened to use Hikvision. |
AI Human Detection & Human Tracking When there is human detection, this Ultra HD 4K camera will auto tracking the human until the human disappears in the field of view. Real Push notification to phone app or Send email with photo when motion is detectedHow to use the Auto tracking for human deteaction: step 1 pls log in trough IE brower by typing the camera's IP, step 2 click Event to Check whether the human detection function is turned on, should be turned on step 3.Click "live" to enable automatic tracking in "Preset" call92 |
| Camera | |
| Image Sensor | 1/2.8”Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F2.0, AGC ON) B/W:0.004 Lux @(F2.0, AGC ON) 0 Lux with IR |
| White Balance | Auto/Manual |
| Shutter Speed | 1/10 s to 1/10,000 s |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 2D/3D DNR |
| WDR | Support |
| Privacy Mask | 4 programmable privacy masks |
| Lens | |
| Focal Length | 4.7-84.6mm lens,18 × optical zoom |
| Field of View | Horizontal field of view: 51.8° to 5.86° (Wide-Tele) Vertical field of view: 39.1° to 4.4° (Wide-Tele) |
| PTZ | |
| Movement Range (Pan) | 0° to 360° |
| Movement Range (Tilt) | 0° to 90° |
| Pan Speed | Configurable, from 0.5°/s to 60°/s. Preset speed: 60°/s |
| Tilt Speed | Configurable, from 0.5°/s to 60°/s. Preset speed: 60°/s |
| Preset Points | 220 |
| Guard Tours | 3 groups （Preset 98、97、96） |
| Guard Points | Max. 16 points |
| Proportional Zoom | Yes |
| Power-off Memory | Yes |
| Tracking | human auto tracking |
| Compression Standard | |
| Video Compression | Main stream: H.265+,H.265,H.264 Sub-stream: H.265+,H.265,H.264 |
| H.265 Type | Baseline profile/Main profile/High profile |
| H.265+ | Yes |
| Event | |
| Basic Event | Motion Detection |
| Intelligent detection | Human Detection / Vehicle Detection |
| IR | |
| IR Distance | 50 m |
| IR LED | 6PCS |
| Image | |
| Max. Resolution | 3840 x 2160 |
| Main Stream | 20fps@8MP(3840 x 2160) 30fps@ (3072 x2048,2592 x1944,2560 x 1440,2304x1296,1920 x 1080) |
| Sub-Stream | 30fps@720 x480 /VGA/640x360/480 x360 /CIF |
| Image Enhancement | BLC/3D DNR/HLC/WDR |
| Network | |
| Network Storage | Support Local storage and NFS,NVR,APP Cloud Storage |
| Protocols | TCP/IP/IPv4/IPv6/HTTP/RTSP/NFS/DHCP/NTP/SMTP/FTP/SSL |
| General Fuction | Privacy Masks, Horizon/Vertical Flip,Password Reset,Upgrade |
| API | ONVIF (Profile S, Profile G, Profile T) |
| Simultaneous Live View | Up to 20 channels |
| User/Host | 3 levels: Administrators, Operators and Users |
| Client | AjDevTool,SADP, Danale App,LMS,iVMS-4200 |
| Web Browser | IE 8+ ,Chrome 57.0+, Firefox 52.0+ |
| Interface | |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, PoE |
| Power | 12V DC |
| Audio | 1 built-in speaker, 1 built-in microphone |
| RS485 | N/A |
| SD Card slot | N/A |
| General | |
| Web Client Language | 7 languages: Chinese, English, Russian, German, Italian,Turkish, 한국어 |
| Power | 12V DC ≤ 3A , 20W MAX/POE(802.3at) |
| Working Environment | Temperature: -20°C to 60°C (-4°F to 140°F), humidity: ≤ 90% |
| Protection Level | IP66 |
| Material | Metal |
| Dimension | Package: 185 x 190 x 285 mm (7.3'' x 7.5'' x 11'') |
| Weight | With Package : Approx. 1.96 kg (2.7 lb.) |
